U-Shaped Steel Bracket

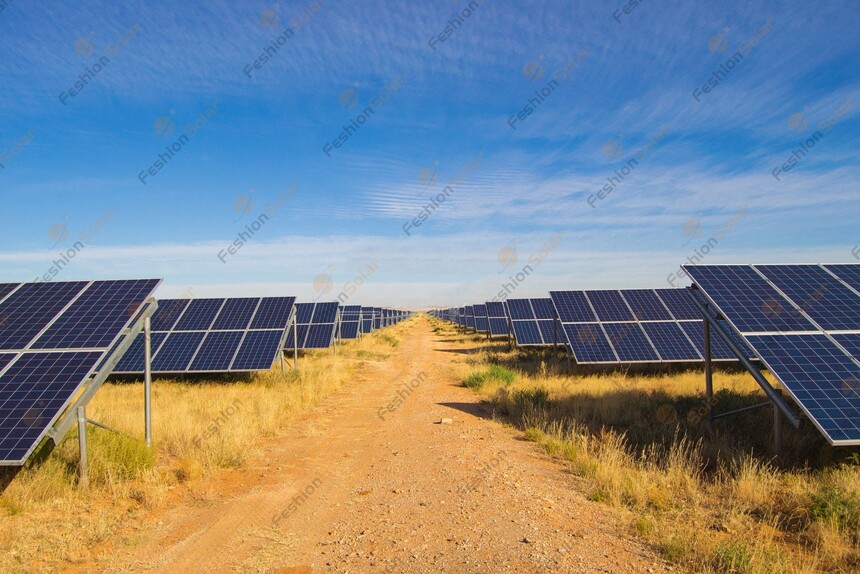

U-Shaped Steel Bracket, suitable for open ground photovoltaic array system, foundation schemes, such as cement pier, spiral pile with disk, applicable materials with high corrosion resistance, such as Magnesium Aluminum Zinc, hot dip galvanized, stainless steel and so on.
82- 产品详情

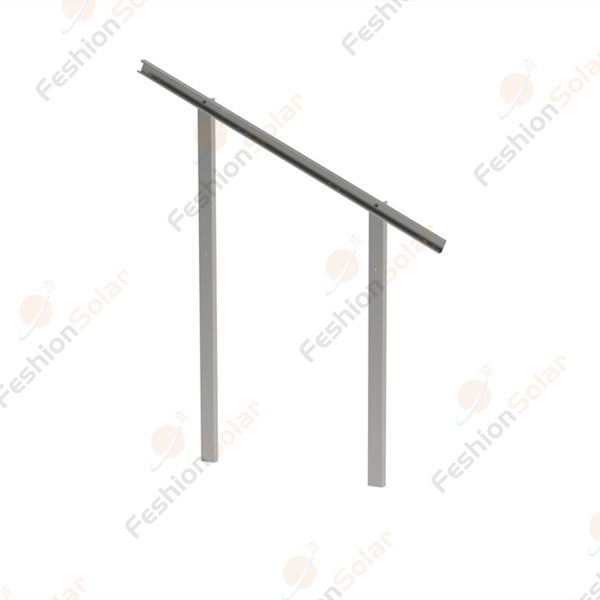

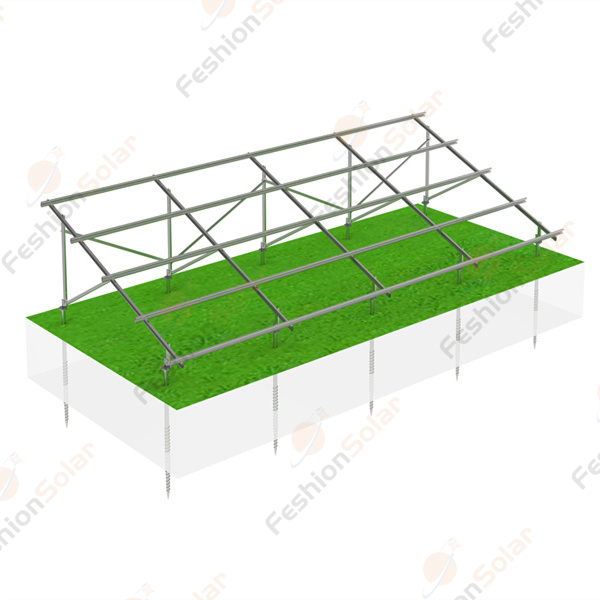

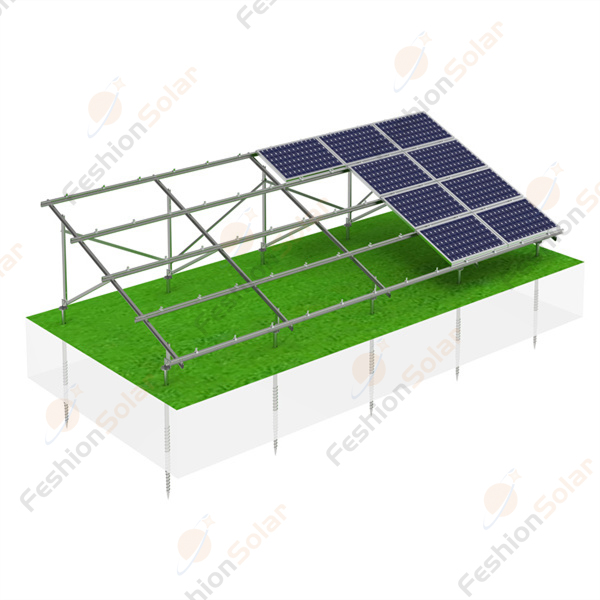

U-shaped steel bracket, numbered FS-GM-S02, is a ground bracket developed by Feshionsolar. It has a simple structure, but it is a high-strength dual column solar energy structure solution. It can be used for spiral pile foundation and cement bridge pier foundation, with convenient and fast installation, and can be designed and customized according to customer needs.
Structural features:
1.Simple double-column structure
2.High strength
3.High self-healing
4.Inexpensive
5.Beautiful design

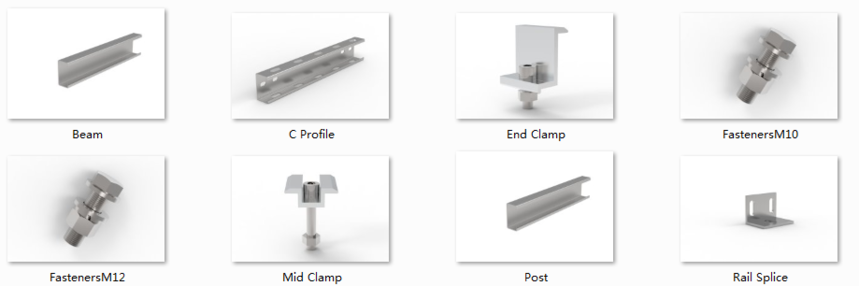

| Material | Structure: Mg-Al-Zn Steel(S350GD+ZM270) (S450GD+ZM270) Components: SUS304/galvanized steel & AL-6005-T5(Anodized） |
| Application | Commercial installation / Power stations |
| Tilt Angle | 0-60° |
| Wind Speed | 0-60 m/s |
| Snow Load | 0-1.4KN/m2 |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, International Building Code IBC 2009 |
| Warranty | 15 years（25 years of service life） |
